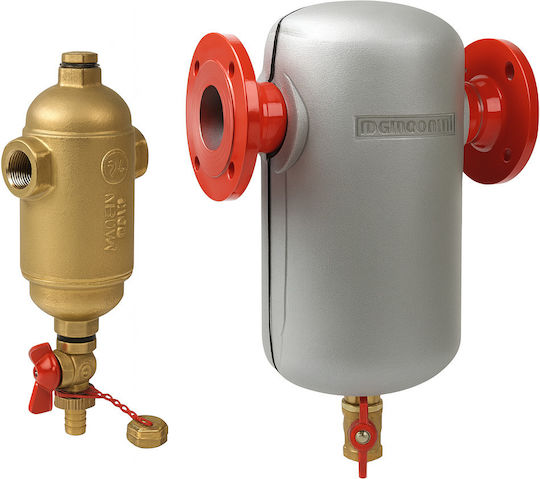

The Giacomini R146DY106 sludge separator is a professional filter with a flange, suitable for industrial and commercial HVAC applications. This device allows the effective removal of solid impurities from the heating or cooling circuit, protecting equipment such as boilers, pumps, or heat exchangers.
Technical specifications:
- Product code: R146DY106
- Connection type: Flange DN65 (according to standard EN 1092-1 PN16)
- Maximum flow: 17.5 m³/h
- Maximum operating pressure: 10 bar
- Operating temperature: 0 to 130 °C
- Total volume: 9.6 liters
- Weight: 15 kg
- Body material: Painted steel
- Internal filter: Metal mesh
- Insulation: Polypropylene, 20 mm thickness, fire protection class B2
- Insulation thermal conductivity: 0.039 W/m·K
- Drain connection: 1” F
- Top cover connection: 1/2” F
Advantages and uses:
- Effective removal of mechanical impurities (sand, rust, sludge)
- Protection of basins, pumps, and HVAC equipment from piston clogging
- Reduction of wear and maintenance needs of equipment
- Compatible with water or glycol solutions up to 50%
- Includes thermal insulation for increased energy efficiency
- Ideal for heating projects, commercial buildings, and industrial processes
Filter and impurity cleaning:
Cleaning the R146DY106 separator is easy and can be done without interrupting system operation:
- Impurities settle at the bottom of the device during operation
- Open the drain valve – impurities are removed
- Close the valve – the cycle returns to normal operation

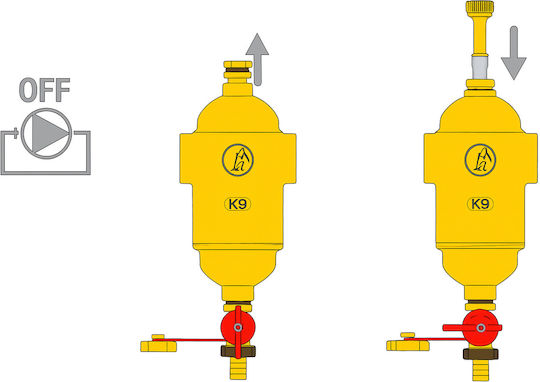

- For deep cleaning (optional):
- Turn off the installation
- Place it upside down

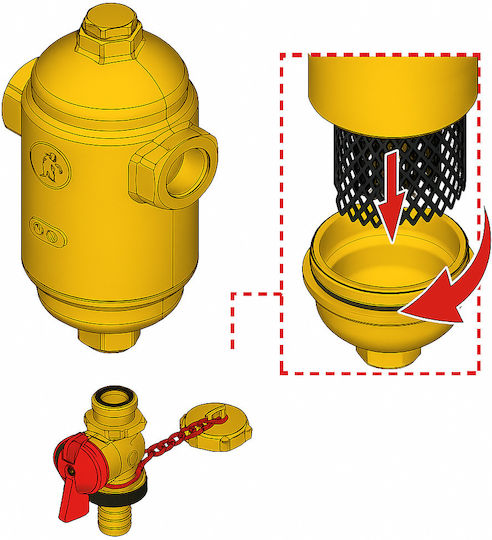

- Remove and clean the metal mesh
- Reinstall the mesh and tighten the cover
Installation:

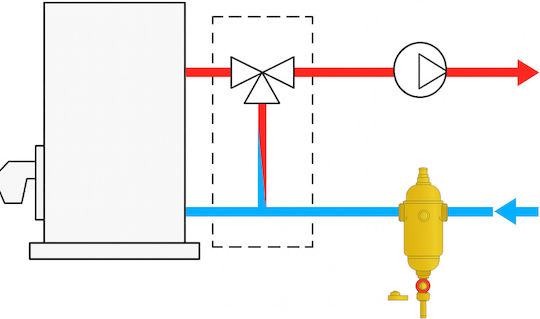

- Installed on the return pipe (between consumer and boiler)
- Placed only on horizontal pipes, in a vertical position
- Not installed with the valve facing upwards or horizontally
- Requires free space for maintenance
- Installation by specialized personnel is recommended

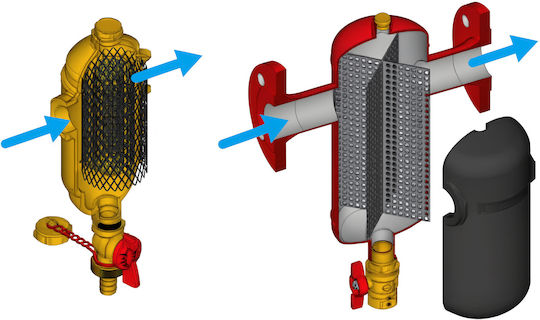

Operation:
- The heat transfer fluid enters the impurity separator and slows down
- Solid particulate impurities are retained by the metal mesh
- Impurities accumulate at the bottom of the device
- They can be easily removed via the drain valve
- The operation is mechanical, without electronic components, ensuring durability and reliability over time

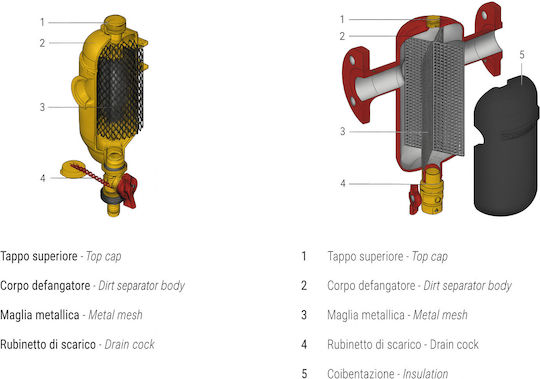

Main components:
- Top cover allowing access to the magnet (if optionally installed)
- Filter body, painted steel, resistant to temperature and pressure
- Metal mesh that retains solid impurities
- Drain valve allowing cleaning without disassembly
- Polypropylene insulation that reduces heat loss and protects the equipment
Package contents: 1 x Mesh separator
Weight: 15.67 kg
Container cover: 9.5 liters
Maximum flow: 17.5 m³/h
Maximum operating pressure: 10 bar
Thread type: Internal
Operating temperature (°C): 0-110
Intended for: Heating installations, whole house
Inlet diameter: 2 inches
Outlet diameter: 2 inches
Filtering method: Mechanical
Mechanical filter cleaning: Manual
Number of filtering stages: 1
Particle size filtered (μm): 800
Material: Steel
Type: Filter

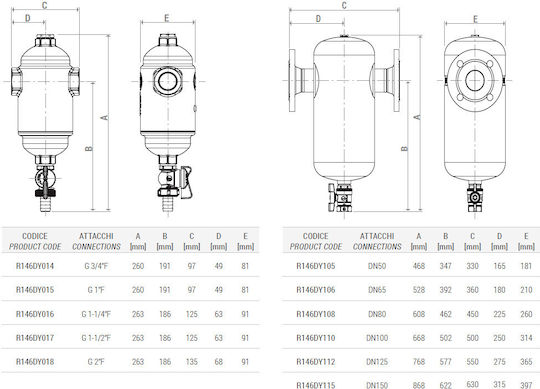

Width: 360 mm
Length: 528 mm
Height: 528 mm
